ANNKE 5MP WiFi CCTV System 10 Channel NVR IP Cameras
ANNKE 5MP WiFi CCTV System 10 Channel NVR IP Cameras
Couldn't load pickup availability

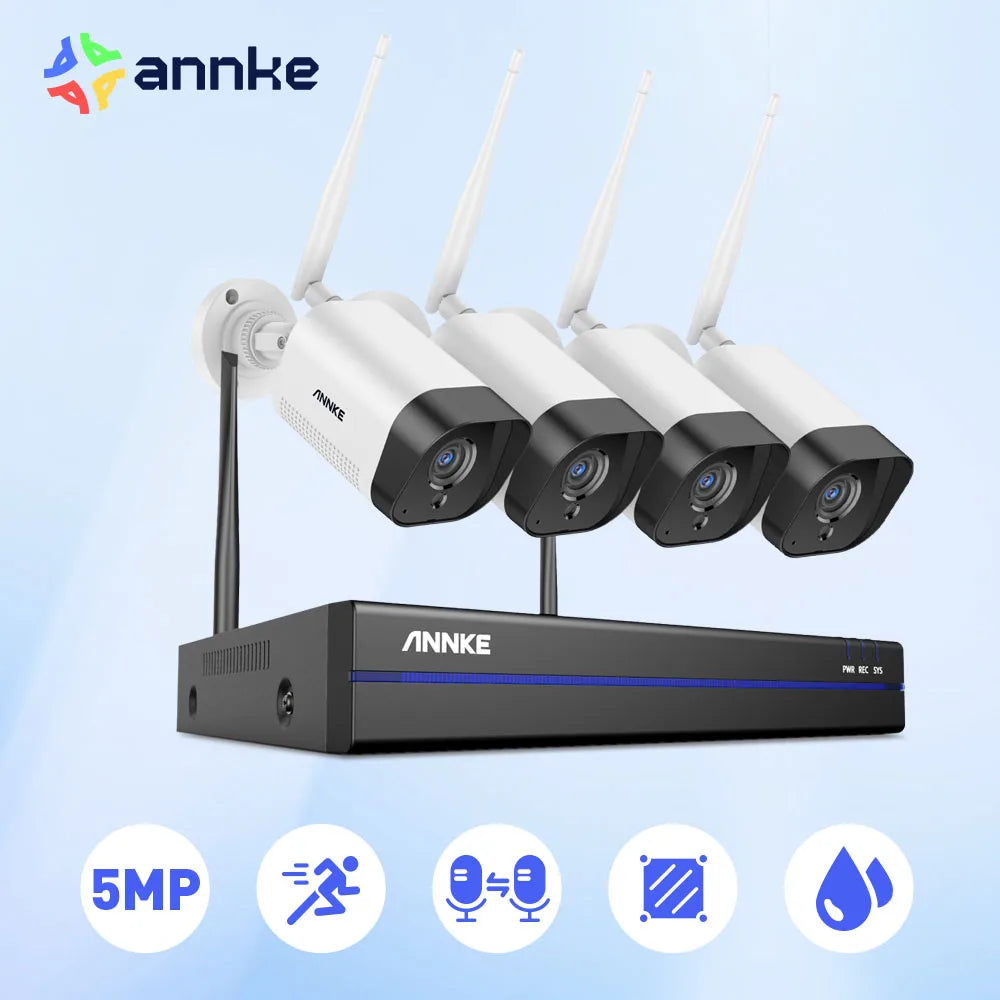

Experience crystal-clear security with the ANNKE 5MP WiFi CCTV System—a 10-channel NVR setup that pairs four high-resolution cameras with plug-and-play Wi‑Fi for fast, simple installation.
- 5MP wireless cameras (2880x1624) with a 3.6mm lens deliver sharp day and night footage, 70° field of view, up to 100 ft of night vision, and IP66 weatherproof protection for indoor or outdoor use.
- True plug‑and‑play Wi‑Fi with 10-channel IP video input and a simple mobile app lets you monitor on the go without complex setup.
- NVR features include H.264+ compression, HDMI/VGA outputs up to 1080P, support for a single SATA HDD up to 6TB, and up to 4-channel playback for efficient storage and review.
- Two‑way audio with built‑in microphone and speaker, plus instant motion-detection email alerts, keep you aware of activity and ready to respond.
NVR | ||
Video Format |
H.264+ |
|
IP Video Input |
10CH Wireless |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 5M |
|
Max Playback Resolution |
Up to 5M |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 6TB capacity(3.5 inches) |
|
|
Network Interface |
RJ45x1(10/100M) |
Wireless antenna |
2 Ports(IEEE802.11b/g/n) |
|
USB |
USB2.0x1 |
|
General |
Housing |
Metal for mainpart |
Operating Power |
DC12V |
|
Power Consumption |
6 W (Without HDD) |
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|
Dimensions (W X H X D) |
260 X 245 X 47 mm |
|
Weight (Without Hard Disk) |
760 g (Without HDD) |
|
IP Camera | ||
Camera |
Video Resolution |
5MP (2880 X 1624) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Video Compression |
H.264+ |
|
Audio Compression |
G.711A |
|
Lens |
3.6mm |
|
Angle of View |
70° |
|
Number of Infra-Red LEDs |
18 |
|
Night Vision Distance |
Up to 100ft/30m |
|
IR-Cut Filter |
Yes |
|
Ethernet |
RJ45x1(10M/100M) |
|
Wireless |
IEEE802.11b/g/n |
|
General |
Housing |
Plastic for Main Part |
Operating Power |
DC12V |
|
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L X W X H) |
||
Weight |
||
